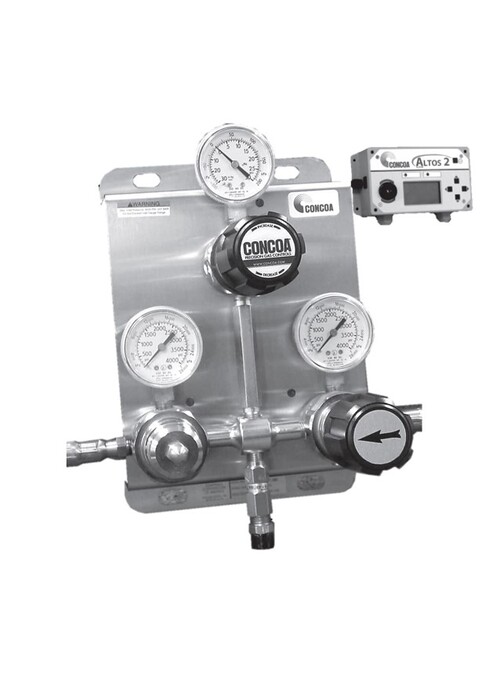

CONCOA 鋼瓶壓差自動切換系統
規格
Maximum Inlet Pressure
3000 PSIG (210 BAR)
4500 PSIG (310 BAR) optional
Temperature Range
-40°F to 140°F (-40°C to 60°C)
Gauges
2" (53mm) diameter stainless steel
Transducers
0-6000 PSIG (4-20 mA output)
Optional intrinsically safe models
Outlet Connection
1/4" MPT (without line regulator)
1/4" FPT (with line regulator)
Helium Leak Integrity
1 x 10-8 scc/sec
Cv
0.1
Weight
8.25 lbs. (3.71 kg)
