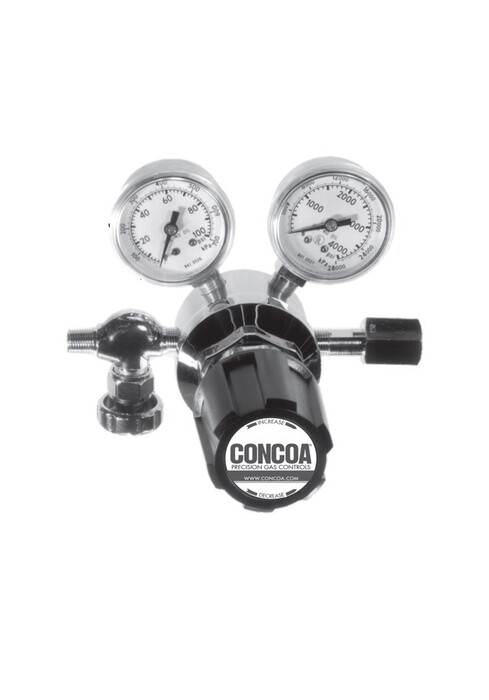

CONCOA 小鋼瓶用調壓閥
規格
Maximum Inlet Pressure
3000 PSIG (210 BAR)
Temperature Range
-40°F to 140°F (-40°C to 60°C)
Gauges
1 1/2" (38mm) diameter
chrome-plated brass case
Ports: 1/8" FPT (1/4" FPT relief valve)
Helium Leak Integrity
1 x 10-8 scc/sec
Cv
0.02
See page 205 for flow curves
Weight (325 3351-170)
2.0 lbs. (0.89 kg)
[本公司為CONCOA產品專業代理]
如有任何需求歡迎來信或來電詢問
