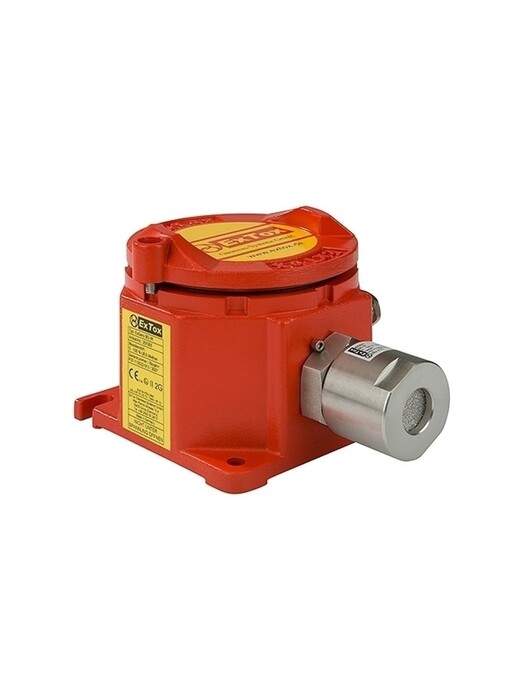

防爆氣體洩漏偵測器 ExTox

規格

Description:

‧ Transmitter for flammable gases, toxic gases or oxygen

(see ExTox Gas- / Transmitter List)

‧ 4…20 mA-output with linear curve

‧ For industrial and commercial applications

‧ Application in explosion hazardous areas of Zones 1 and 2

Features:

Measured Gas: ExTox Gas- / Transmitter List

Measuring Range: ExTox Gas- / Transmitter List. On demand the standard measuring range can factory

sided be diversified in range 50 to 200 %. Bigger deviations if applicable on demand.

Measuring Principles: ExSens …-WT: Catalytic Combustion

‧ ExSens …-IR: Absorption

‧ ExSens …-EC: Electrochemical Cell

‧ ExSens …-KE: Electrochemical Oxygen Cell

‧ ExSens …-HL: Metal oxide-semiconductor

Operation Mode: Diffusion (Operation with aspirated flow possible, e. g. in ExTox IMC)

Response Time: ExTox Gas- / Transmitter List

Range of Application:

Temperature: ExTox Gas- / Transmitter List

Humidity: 10 r. H to 90 r. H (please avoid condensation)

Pressure: 800 hPa to 1100 hPa

Deviations: Changes on climatic conditions can be done with the usual rate for atmospheric

deviations. Very quick changes, such as for example shock pressures, can cause

bigger measuring deviations for short time.

‧ Extension of climatic ranges is in particular cases possible acc. to prior agreement

with ExTox.
