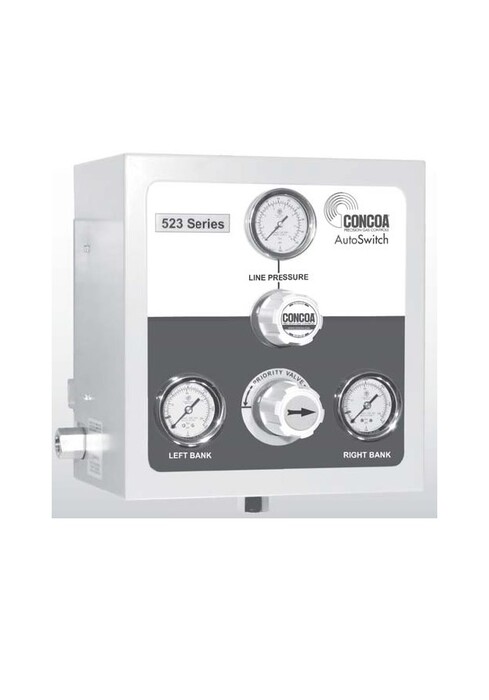

CONCOA 全自動壓差控制系統
規格
Maximum Inlet Pressure
3000 PSIG (210 BAR)
Temperature Range
-40°F to 140°F (-40°C to 60°C)
Maximum Flow at 100 PSIG (7 BAR)
600 SCFH (283 LPM)
Cv
0.1
Inlet Connection
1/2" FPT
Outlet Connection
1/4" stainless steel compression tube
Relief Valve Outlet
1/2" FPT
Helium Leak Integrity
1 x 10-8 scc/sec
Weight
40 lbs. (18 kg)
[本公司為CONCOA產品專業代理]
如有任何需求歡迎來信或來電詢問
